RIGID-IMC FITTINGS

ALUMINUM MOGULS WITH COVER AND GASKET

Back
image description
image description

MLB350A

CATALOG NUMBERMLB350A
TRADE SIZE3-1/2"
MAX WIRE SIZE3 #750 MCM
VOL. CU.IN.1051.00

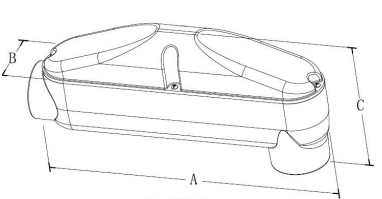

DIM A29.19
DIM B5.75
DIM C10.14
UNIT PACK—
MASTER PACK1
LBS./ 100 PCS1556
UPC #12816

APPLICATION

  • Larger body size facilitates pull of
    large and heavy conductors.
    Specially designed raised covers provide additional wiring area.
  • SEPCO Moguls are used for pulling straight, 45° or 90° angle turns and/or making taps and splices.

FEATURES

  • Smooth, rounded integral bushing
    in each hub protects conductor
    insulation.
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity.
  • Lightweight aluminum facilitates shipping, handling, and installing.

STANDARD MATERIALS

Bodies and Covers: Aluminum
Gaskets: Fiber 1-1/4″–2″,
Neoprene 2-1/2″–4″
Screws: Stainless Steel

STANDARD FINISH

Aluminum Enameled

UL LISTED

E198259
