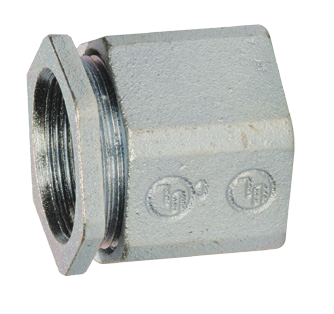

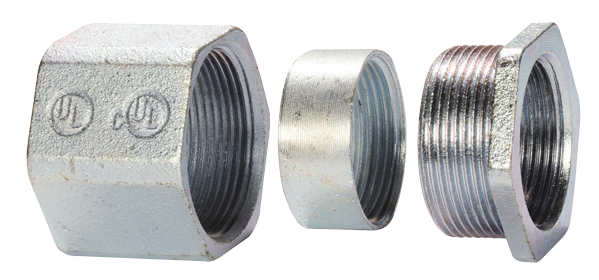

MALLEABLE IRON 3-PIECE COUPLINGS
Back
1022
Trade Size | 1/2” |
---|---|

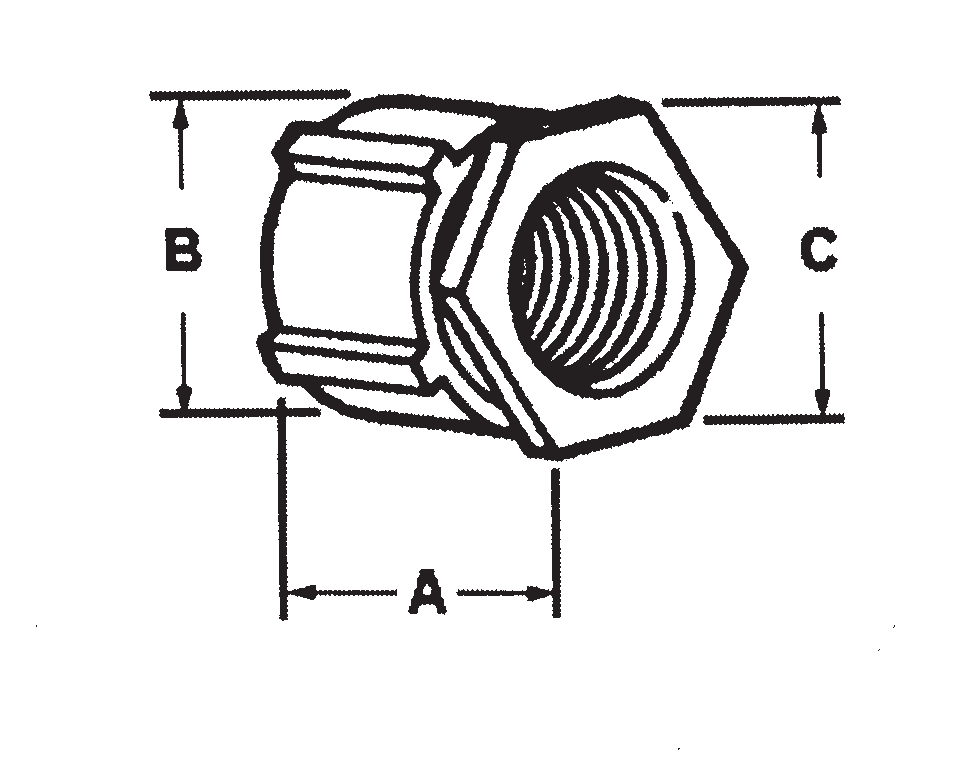

Dim A | 1.38 |
Dim B | 1.36 |
Dim C | 1.36 |
Unit Pack | 20 |
Master Pack | 200 |
Lbs. / 100 Pcs. | 26 |
UPC | 10221 |
Competitor Part Number | C-50, 200, 1121, 190M, 65505B, L-500, TPC-50, 4-50, 1502, 1502, EK-401, 675, 851 |
APPLICATION
Used to join two lengths of threaded conduit.
FEATURES
- Threaded (NPS) for rigid conduit and IMC
- Concrete tight
STANDARD MATERIALS
Malleable Iron
STANDARD FINISH
Zinc Plated
UL LISTED
E198258
