Are you looking for ease of
installation and durability on your next jobsite?
Check out SEPCO’s expansive catalog of Rigid/IMC fittings. From junction conduit outlet boxes, FS & FD device boxes and covers, compression and set-screw connectors and couplings, as well as multiple insulated bushings, you are sure to find the electrical fitting you need.
Contact SEPCO today.

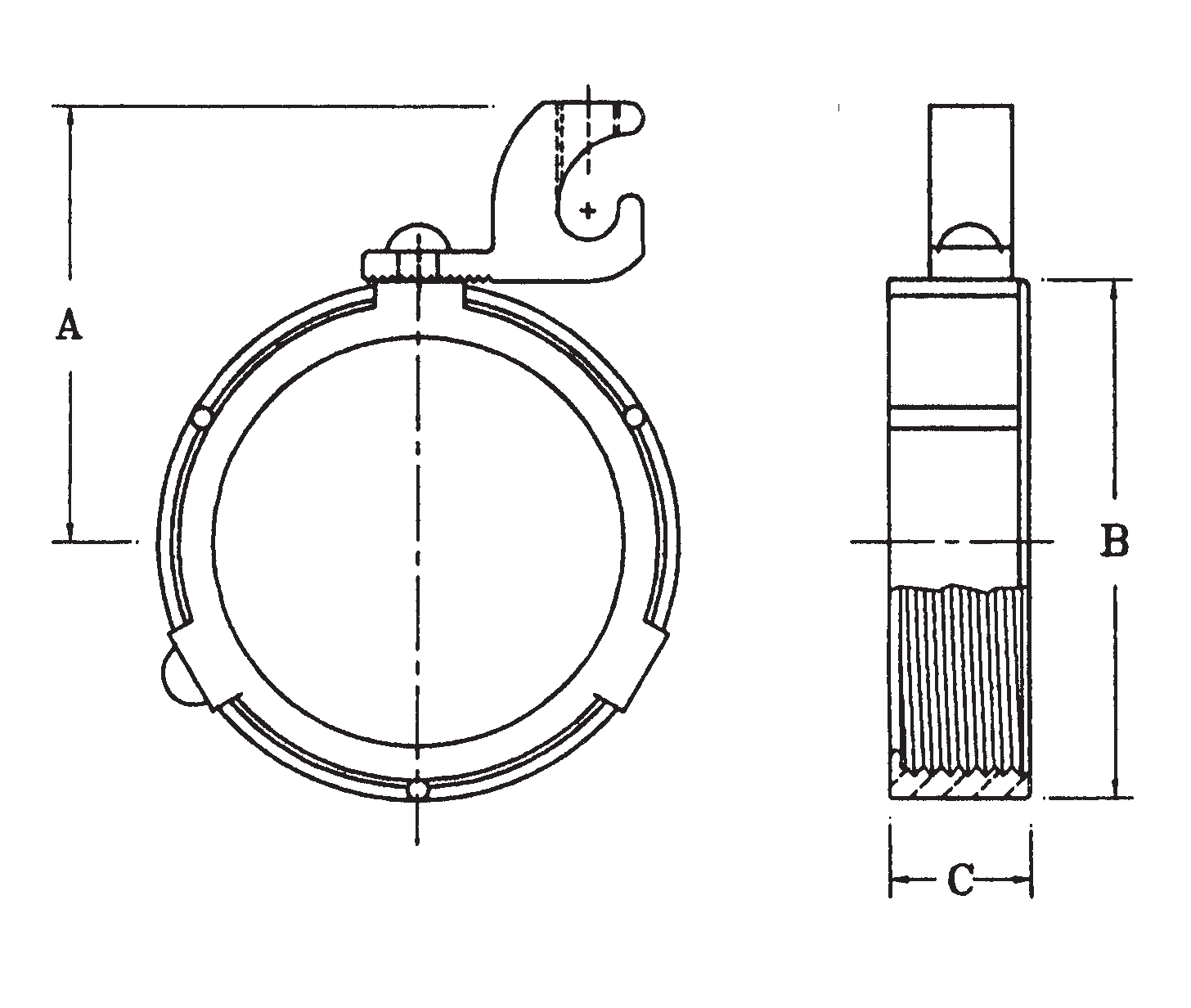

MALLEABLE IRON INSULATED GROUNDING BUSHINGS
|GROUNDING LUG CAPACITY||#14 - #4|
|Lbs. / 100 Pcs.||23|
|Competitor Part Number||IB-125L-4, 384-14, HGLL4, MCBGI-125, IBC-125L-4AC, 1265, 1265, BG-804, 3873, 334M|
Used with a locknut to terminate threaded rigid and IMC conduit to a box or enclosure and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire insulation. Liner rated at 150°C.
- The plastic liner won’t chip, crack, swell or shrink. It resists corrosion, chemicals, and temperature extremes.
- Set-screw provided with each fitting locks bushing in any desired position.
- UL Listed for use with Copper or Aluminum Grounding Conductors.
Malleable Iron/Open side tin plated aluminum lug.
Optional Lug: Available with copper lug; use suffix C instead of L. Example 20BI4C.
For additional corrosion protection, specify Hot Dipped Galvanized. Add suffix ‘G’ to Malleable Iron catalog number. Example 20BI4LG. For more information, see page 14.
