AC-MC-FLEX FITTINGS
SEPCO CARRIES A LARGE INVENTORY OF AC-MC-FLEX FITTINGS!
Including big bite-saddle type connectors and couplings, quicklock type connectors, and malleable iron or zinc cable connectors. We also offer zinc two screw take-all connectors. Get what you need with SEPCO’s unparalleled service and delivery.
ZINC CABLE AND CONDUIT CONNECTORS (DUPLEX 144 SINGLE SCREW, DUPLEX TWO-SCREW, SET-SCREW, 145 TWO SCREW, AND SADDLE TYPE)

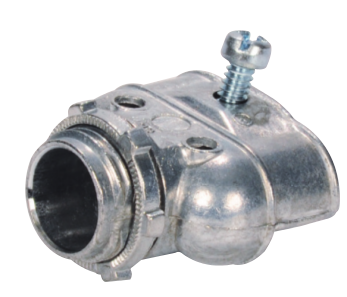

C270A
Trade Size | 3/8” |
---|---|

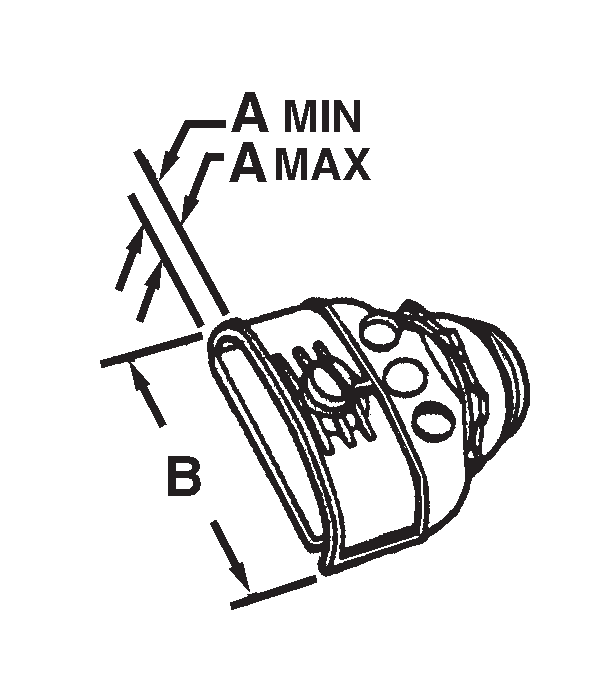

Dim A Min. | 0.438 |
Dim A Max. | 1.688 |
Dim B | 1.625 |
Unit Pack | 25 |
Master Pack | 250 |
Lbs. / 100 Pcs. | 13 |
UPC | 52712 |
APPLICATION
For use with flexible metal conduit and reduced wall flexible metal conduit, metal clad and armored cable. They are used to connect two, Trade Size 3/8 (12) flexible metal conduits, two armored cable of appropriate size marked, or two metal clad cable of appropriate size marked to an enclosure through a Trade Size 1/2 (16) knockout.
FEATURES
- UL Listed Locknut
- Male hub NPS
- Tri-combo head screws
STANDARD MATERIALS
Zinc Die Cast
UL LISTED
E198258
CSA File No. LR57925
