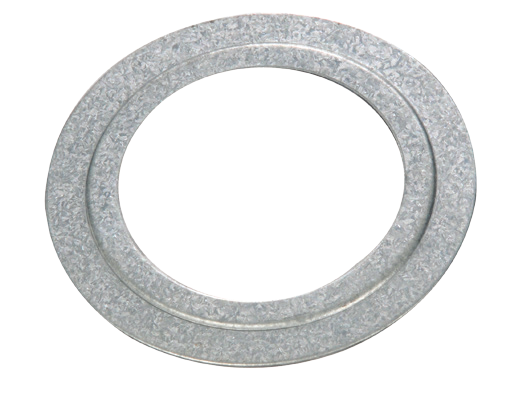

CONDUIT REDUCING WASHERS

APPLICATION

Reduce knockout size on sheet metal box, enclosure or cabinet.

Note: Two reducing washers are required for each knockout.

STANDARD MATERIALS

Galvanized Steel

UL LISTED

E198257

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
CW19 1/2” x 1/4” - 500 81197
CW20 1/2” x 3/8” - 500 81207
CW21 3/4” x 1/2” 250 2500 81217
CW31 1” x 1/2” 250 2500 81506
CW32 1” x 3/4” 250 2500 81507
CW41 1-1/4” x 1/2” 100 1000 81508
CW42 1-1/4” x 3/4” 100 1000 81510
CW43 1-1/4” x 1” 100 1000 81512
CW51 1-1/2” x 1/2” 100 1000 81517
CW52 1-1/2” x 3/4” 100 1000 81527
CW53 1-1/2” x 1” 100 1000 81537
CW54 1-1/2” x 1-1/4” 100 1000 81547
CW61 2” x 1/2” 50 500 81617
CW62 2” x 3/4” 50 500 81627
CW63 2” x 1” 50 500 81637
CW64 2” x 1-1/4” 50 500 81647
CW65 2” x 1-1/2” 50 500 81657
CW71 2-1/2” x 1/2” 50 500 81717
CW72 2-1/2” x 3/4” 50 500 81727
CW73 2-1/2” x 1” 50 500 81737
CW74 2-1/2” x 1-1/4 50 500 81747
CW75 2-1/2” x 1-1/2” 50 500 81757
CW76 2”-1/2 x 2” 50 500 81767
CW81 3” x 1/2” 25 250 81817
CW82 3” x 3/4” 25 250 81827
CW83 3” x 1” 25 250 81837
CW84 3” x 1-1/4” 25 250 81847
CW85 3” x 1-1/2” 25 250 81857
CW86 3” x 2” 25 250 81867
CW87 3” x 2-1/2” 25 250 81877
CW91 3-1/2” x 1/2” 10 100 81917
CW92 3-1/2” x 3/4” 10 100 81927
CW93 3-1/2” x 1” 10 100 81937
CW94 3-1/2” x 1-1/4” 10 100 81947
CW95 3-1/2” x 1-1/2” 10 100 81957
CW96 3-1/2” x 2” 10 100 81967
CW97 3-1/2” x 2-1/2” 10 100 81977
CW98 3-1/2” x 3” 10 100 81987
CW101 4” x 1/2” 10 100 81017
CW102 4” x 3/4” 10 100 81027
CW103 4” x 1” 10 100 81037
CW104 4” x 1-1/4 10 100 81047
CW105 4” x 1-1/2” 10 100 81057
CW106 4” x 2” 10 100 81067
CW107 4” x 2-1/2” 10 100 81077
CW108 4” x 3” 10 100 81087
CW109 4” x 3-1/2” 10 100 81097
