RIGID-IMC FITTINGS

Are you looking for ease of
installation and durability on your next jobsite?

Check out SEPCO’s expansive catalog of Rigid/IMC fittings. From junction conduit outlet boxes, FS & FD device boxes and covers, compression and set-screw connectors and couplings, as well as multiple insulated bushings, you are sure to find the electrical fitting you need.

Contact SEPCO today.

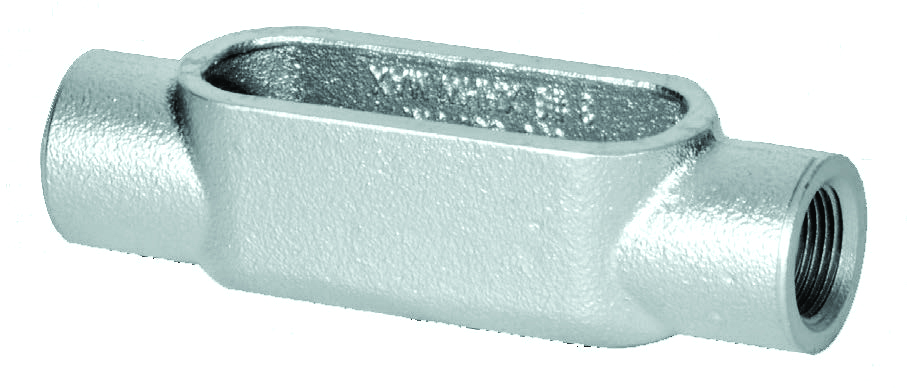

FORM 7 CONDUIT BODIES

APPLICATION

To provide access to conductors for pulling, splicing, maintenance and future changes / upgrades. Allows connection of straight conduit runs, branch conduit runs and 90° bends

FEATURES

  • Time saving Clip-On covers in steel or gray iron
  • Tapered threads hubs (NPT)
  • Flat back designs for greater wiring capacity and surface mounting
  • Complete interchangeability with other manufacturers Form 7 conduit bodies
  • Internal volume and maximum wire clearly marked on castings

STANDARD MATERIALS

Gray Iron

STANDARD FINISH

Zinc Plated

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
C17F7 1/2” 10 50 10480
C27F7 3/4” 5 50 10481
C37F7 1” 5 25 10482
C47F7 1-1/4” 1 10 10483
C57F7 1-1/2” 1 10 10484
C67F7 2" 1 5 10485
C77F7 2-1/2” - 1 10486
C87F7 3” - 1 10487
C97F7 3-1/2” - 1 10488
C107F7 4” - 1 10489
Download Specification Sheet
