HOT DIPPED GALVANIZED FITTINGS

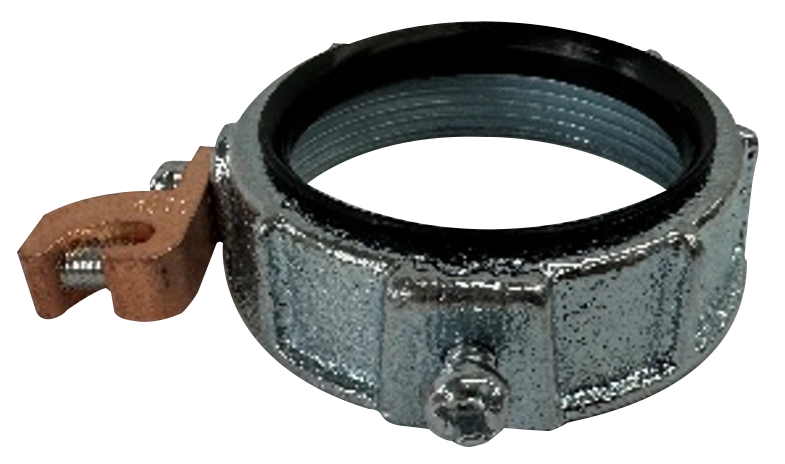

INSULATED GROUNDING BUSHINGS
APPLICATION
- Used with a locknut to terminate threaded rigid and IMC conduit to a box or enclosure and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire insulation. Liner rated at 150°C.
FEATURES
- The plastic liner won’t chip, crack, swell, or shrink. It resists corrosion, chemicals, and temperature extremes.
- Set-screw provided with each fitting locks bushing in any desired position.
STANDARD MATERIALS
Malleable Iron/Open side copper lug.
• Optional Lug: Available with aluminum lug; use suffix “L” instead of “C”.
Example 21BI4LG. See page 21.
STANDARD FINISH
Hot Dipped Galvanized/Zinc Plated
OPTIONAL FINISH
For Malleable Iron/Zinc Plated, please remove suffix “G” from Hot Dipped Galvanized Catalog Number and see page 82.
UL LISTED
E93683
![]()

| Catalog Number | Trade Size | Unit Pack | Master Pack | Upc | |
|---|---|---|---|---|---|
| 20BI4CG | 1/2" | 100 | 1000 | 10119 | View details |
| 21BI4CG | 3/4" | 50 | 500 | 10120 | View details |
| 22BI4CG | 1" | 25 | 250 | 10121 | View details |
| 23BI4CG | 1-1/4" | 25 | 250 | 10122 | View details |
| 24BI4CG | 1-1/2" | 25 | 250 | 10123 | View details |
| 24BIOCG | 1-1/2" | 25 | 250 | 20031 | View details |
| 25BI4CG | 2" | 25 | 250 | 10124 | View details |
| 25BIOCG | 2" | 25 | 250 | 10125 | View details |
| 25BI4OCG | 2" | — | 25 | 10126 | View details |
| 26BIOCG | 2 1/2" | — | 10 | 10127 | View details |
| 26BI4OCG | 2 1/2" | — | 10 | 10128 | View details |
| 27BIOCG | 3" | — | 10 | 10130 | View details |
| 27BI4OCG | 3" | — | 10 | 10131 | View details |
| 28BIOCG | 3-1/2" | — | 10 | 10133 | View details |
| 28BI4OCG | 3-1/2" | — | 10 | 10134 | View details |
| 29BIOCG | 4" | — | 10 | 10136 | View details |
| 29BI4OCG | 4" | — | 10 | 10137 | View details |
| 30BI4OCG | 5" | — | 10 | 10140 | View details |
| 31BI4OCG | 6" | — | 10 | 10143 | View details |
