MISCELLANEOUS FITTINGS

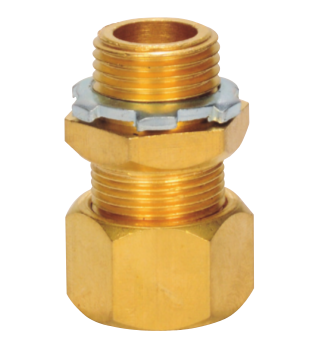

KENNY CLAMPS ®

APPLICATION

Clamp connector is for bonding and grounding of electrode conductors in panel boards, transformers, raceways and enclosures.

FEATURES

  • The Kenny Clamp is the ONLY UL Listed connector for bonding and grounding of electrode conductors
  • Assures good metallic connection and low impedance path for grounding and bonding of electrical equipment
  • Tested and listed at 9000 amperes
  • Complies with 110.3 (B) 250.8 and 312.5 A NEC, using a listed grounding or bonding connector
    for the proper application
  • Meets UL 467 requirements for bonding and grounding and UL 468A standard for connectors

STANDARD MATERIALS

Brass

UL LISTED

Catalog NumberTrade SizeUnit PackMaster PackUpc
KC1AST #1/0 AWG STRANDED 10 100 99900 View details
KC2AST #2/0 AWG STRANDED 10 100 99901 View details
KC2ST #2 AWG STRANDED 10 100 99902 View details
KC3AST #3/0 AWG STRANDED 10 100 99903 View details
KC4AST #4/0 AWG CONCENTRIC 10 100 99899 View details
KC4SO #4 AWG SOLID 10 100 99904 View details
KC4ST #4 AWG STRANDED 10 100 99905 View details
KC6SO #6 AWG SOLID 10 100 99906 View details
KC6ST #6 AWG STRANDED 10 100 99907 View details
KC8SO #8 AWG SOLID 10 100 99908 View details
KC8ST #8 AWG STRANDED 10 100 99909 View details
