CORD GRIP FITTINGS

SEPCO offers time-tested service and quality with our cord grip electrical fittings.

We carry steel straight, malleable iron 90° and 45° cord grip strain relief connectors. Our large inventory guarantees you can find what you need when you need it.

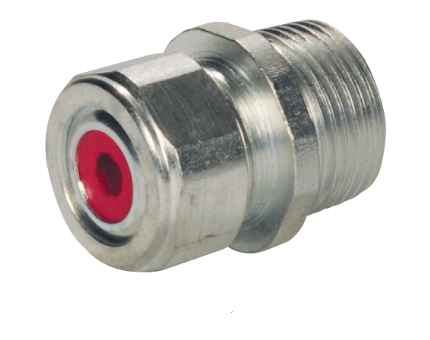

STEEL STRAIGHT CORD GRIP STRAIN RELIEF CONNECTORS

APPLICATION

To secure and seal cords or cables entering enclosures or raceways.

FEATURES

Neoprene Grommet for a moisture proof seal
Simple installation, cord can be installed without disassembly of the fitting
Liquidtight/Oiltight/Raintight
Suitable for NEMA 4 enclosures and other wet locations
Male tapered thread NPT
Colored gripper allows for easy identification

STANDARD MATERIALS

Steel Body / Steel Gland Nut Neoprene Grommet

STANDARD FINISH

Zinc Plated

UL LISTED

E198257

CG50-250 type

Catalog Number	Trade Size	Unit Pack	Master Pack	UPC
CG50-250	1/2”	25	100	85001	View details
CG50-350	1/2”	25	100	85002	View details
CG50-450	1/2”	25	100	85003	View details
CG50-550	1/2”	25	100	85004	View details
CG50-650	1/2”	25	100	85005	View details
CG75-250	3/4”	10	50	85101	View details
CG75-350	3/4”	10	50	85102	View details
CG75-450	3/4”	10	50	85103	View details
CG75-560	3/4”	10	50	85104	View details
CG75-650	3/4”	10	50	85105	View details
CG75-750	3/4”	10	50	85106	View details
CG75-850	3/4”	10	50	85107	View details
CG100-560	1”	5	25	85201	View details
CG100-650	1”	5	25	85202	View details
CG100-750	1”	5	25	85203	View details
CG100-850	1”	5	25	85204	View details
CG100-950	1”	5	25	85205	View details
CG100-1050	1”	5	25	85206	View details
CG125-850	1-1/4”	5	25	85301	View details
CG125-950	1-1/4”	5	25	85302	View details
CG125-1050	1-1/4”	5	25	85303	View details
CG125-1150	1-1/4”	5	25	85304	View details
CG125-1250	1-1/4”	5	25	85305	View details
CG125-1375	1-1/4”	5	25	85306	View details
CG150-1050	1-1/2”	2	10	85401	View details
CG150-1150	1-1/2”	2	10	85402	View details
CG150-1250	1-1/2”	2	10	85403	View details
CG150-1375	1-1/2”	2	10	85404	View details

Download Specification Sheet
