LIQUIDTIGHT FITTINGS
SEPCO provides high-quality liquidtight fittings with our standard fast delivery and great service.
We offer straight, 90°and 45° liquid tight connectors with aluminum lugs or copper lugs. We also carry galvanized liquid tight fittings with copper lugs and zinc straight and 90°fittings.

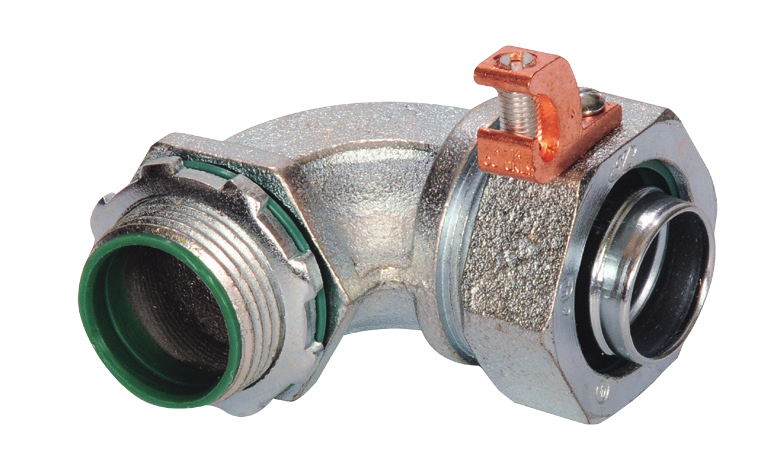

MALLEABLE IRON 90° LIQUIDTIGHT CONNECTORS WITH COPPER LUGS
APPLICATION
Connects conduit and terminates bonding conductor run externally across liquidtight conduit.
FEATURES
- Tapered threaded male hub NPT
- Compact, slim diameter with small turning radius
- Furnished with Insulated throat, steel locknut, and sealing ring
- Liquidtight/Raintight/Concrete tight/Oiltight
- Suitable for grounding and wet locations
- Long ferrule prevents pullout and tight bend conduit ‘pop-out’
- UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I
STANDARD MATERIALS
Malleable Iron/Steel Ferrule/ Copper Grounding Lug
STANDARD FINISH
Zinc Plated/Natural
UL LISTED
E93683
OPTIONAL FINISH
For additional corrosion protection, specify Mechanical Galvanized. Add suffix ‘MG’ to Malleable Iron catalog number. Example SLT35CLTMG. For more information, see page 20.
| Catalog Number | Trade Size | Unit Pack | Master Pack | UPC | |
|---|---|---|---|---|---|
| SLT25CLT | 3/8” | 10 | 100 | 50013 | View details |
| SLT35CLT | 1/2” | 10 | 100 | 50014 | View details |
| SLT36CLT | 3/4” | 10 | 100 | 50015 | View details |
| SLT37CLT | 1” | 5 | 50 | 50016 | View details |
| SLT38CLT | 1-1/4” | - | 10 | 50017 | View details |
| SLT39CLT | 1-1/2” | - | 10 | 50018 | View details |
| SLT40CLT | 2” | - | 5 | 50019 | View details |
| SLT65CLT | 2-1/2” | - | 1 | 50020 | View details |
| SLT66CLT | 3” | - | 1 | 50021 | View details |
| SLT67CLT | 3-1/2” | - | 1 | 50022 | View details |
| SLT68CLT | 4” | - | 1 | 50023 | View details |
