LIQUIDTIGHT FITTINGS

SEPCO provides high-quality liquidtight fittings with our standard fast delivery and great service.

We offer straight, 90°and 45° liquid tight connectors with aluminum lugs or copper lugs. We also carry galvanized liquid tight fittings with copper lugs and zinc straight and 90°fittings.

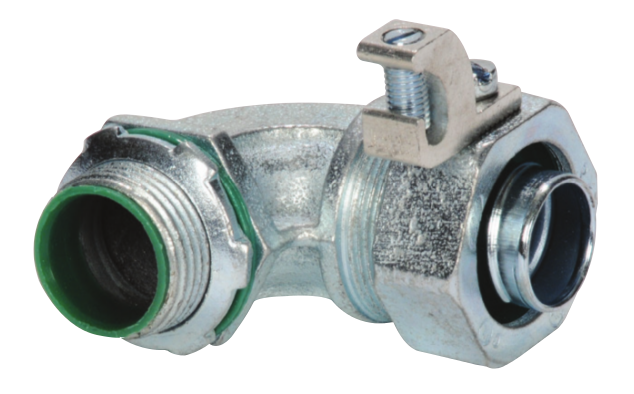

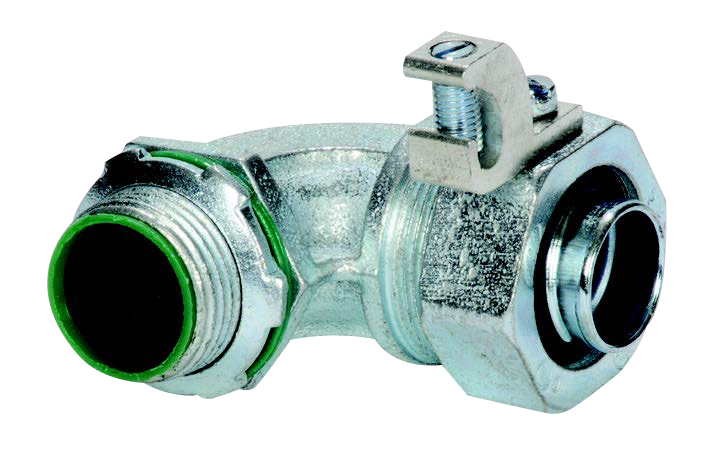

MALLEABLE IRON 90° LIQUIDTIGHT CONNECTORS WITH ALUMINUM LUGS

APPLICATION

Connects conduit and terminates bonding conductor run externally across liquidtight conduit.

FEATURES

  • Tapered threaded male hub NPT
  •  Compact, slim diameter with small turning radius
  •  Furnished with Insulated throat, steel locknut, and sealing ring
  • Liquidtight/Raintight/Concrete tight/Oiltight
  •  Suitable for grounding and wet locations
  • Long ferrule prevents pullout and tight bend conduit ‘pop-out’
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I

STANDARD MATERIALS

Malleable Iron/Steel Ferrule/ Aluminum Grounding Lug

STANDARD FINISH

Zinc Plated

UL LISTED

E212551

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
SLT25ALT 3/8” 10 100 50013
SLT35ALT 1/2” 10 100 50014
SLT36ALT 3/4” 10 100 50015
SLT37ALT 1” 5 50 50016
SLT38ALT 1-1/4” - 10 50017
SLT39ALT 1-1/2” - 10 50018
SLT40ALT 2” - 5 50019
SLT65ALT 2-1/2” - 1 50020
SLT66ALT 3” - 1 50021
SLT67ALT 3-1/2” - 1 50022
SLT68ALT 4” - 1 50023
Download Specification Sheet
