LIQUIDTIGHT FITTINGS

SEPCO provides high-quality liquidtight fittings with our standard fast delivery and great service.

We offer straight, 90°and 45° liquid tight connectors with aluminum lugs or copper lugs. We also carry galvanized liquid tight fittings with copper lugs and zinc straight and 90°fittings.

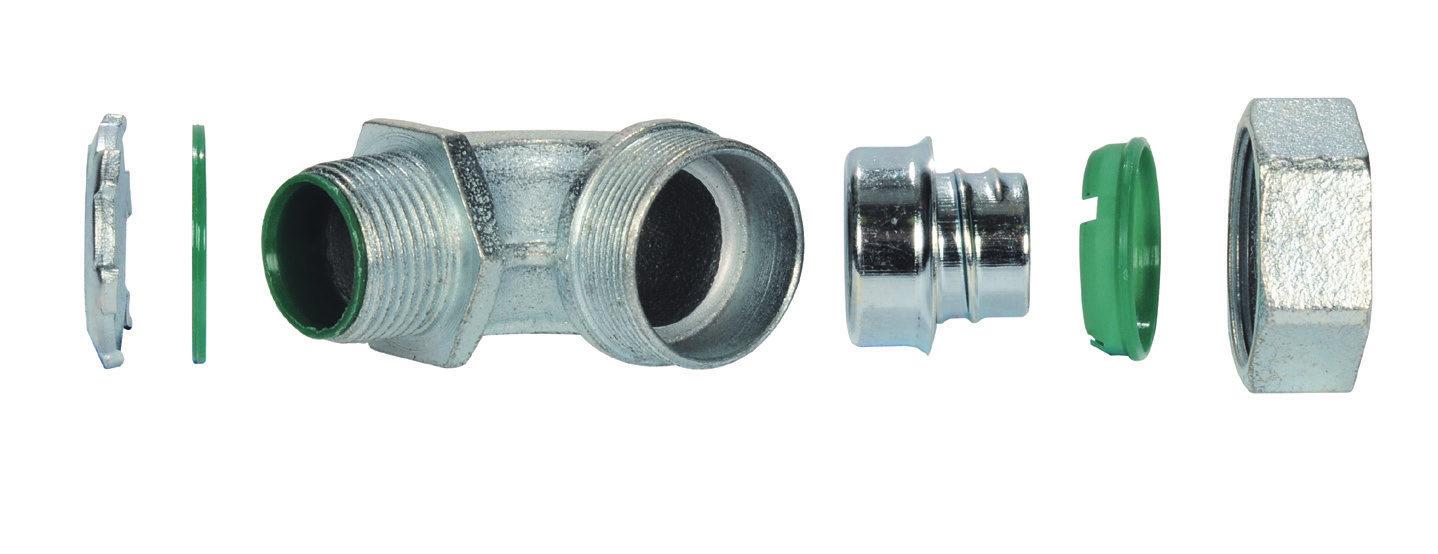

MALLEABLE IRON 90° LIQUIDTIGHT CONNECTORS

Back
image description
image description
image description

SLT39T

Trade Size1-1/2”
Ko Size1-1/2”
I.D.1.530
O.D.1.844

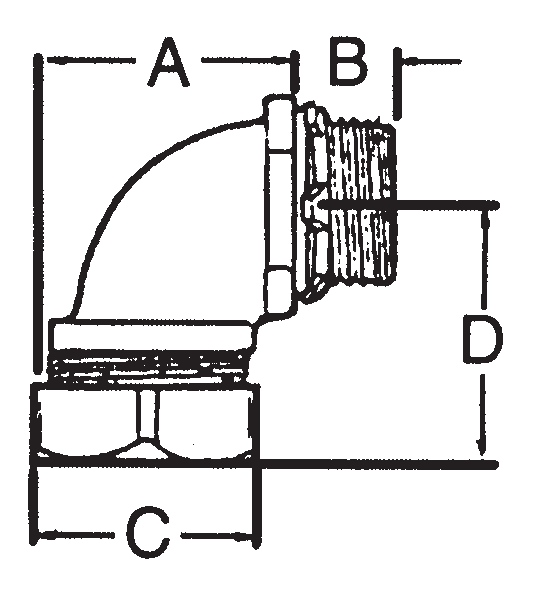

Dim A2.68
Dim B0.73
Dim C2.44
Dim D2.40
Unit Pack-
Master Pack10
Lbs. / 100 Pcs.124
UPC14399
Competitor Part NumberTB-90150, 474-SLTI, LTB15090, 86915B, K15091, SL90150I, MSTR-15090-B, 4Q-9150T, 3546, 3546, 5356, 495S

APPLICATION

To secure, ground seal Liquidtight Flexible Metal conduit, to boxes and enclosures

FEATURES

  • Tapered threaded male hub NPT Compact, slim diameter with small turning radius
  • Furnished with an insulated throat with steel locknut and sealing ring
  • Liquidtight/Raintight/Concrete tight/Oiltight
  • Suitable for wet locations
  • Long ferrule prevents pullout and tight bend conduit “pop-out”
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I

STANDARD MATERIALS

Malleable Iron/Steel Ferrule

STANDARD FINISH

Zinc Plated

UL LISTED

E198258

OPTIONAL FINISH

For additional corrosion protection, specify Mechanical Galvanized. Add suffix ‘MG’ to Malleable Iron catalog number. Example SLT35TMG. For more information, see page 17.
