RIGID-IMC FITTINGS
Are you looking for ease of
installation and durability on your next jobsite?
Check out SEPCO’s expansive catalog of Rigid/IMC fittings. From junction conduit outlet boxes, FS & FD device boxes and covers, compression and set-screw connectors and couplings, as well as multiple insulated bushings, you are sure to find the electrical fitting you need.
Contact SEPCO today.

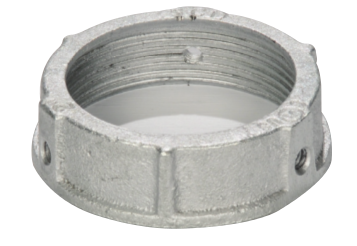

MALLEABLE IRON AND ZINC CONDUIT BUSHINGS
APPLICATION
Used with a locknut to terminate threaded rigid and IMC conduit to a box or enclosure.
FEATURES
Bushing surface rounded to prevent damage to wire insulation during pulling.
STANDARD MATERIALS
Malleable Iron
STANDARD FINISH
Zinc plated
UL LISTED
E198258
| Catalog Number | Trade Size | Unit Pack | Master Pack | UPC | |
|---|---|---|---|---|---|
| 806 | 1/2” | 100 | 1000 | 18061 | View details |
| 807 | 3/4” | 100 | 1000 | 18071 | View details |
| 808 | 1” | 50 | 500 | 18081 | View details |
| 809 | 1-1/4” | 25 | 250 | 18091 | View details |
| 810 | 1-1/2” | 25 | 250 | 18101 | View details |
| 811 | 2” | - | 25 | 18111 | View details |
| 812 | 2-1/2” | - | 25 | 18121 | View details |
| 814 | 3” | - | 25 | 18141 | View details |
| 815 | 3-1/2” | - | 25 | 18151 | View details |
| 816 | 4” | - | 25 | 18161 | View details |
| 817 | 5” | - | 25 | 18171 | View details |
| 818 | 6” | - | 25 | 18181 | View details |
