HOT DIPPED GALVANIZED FITTINGS

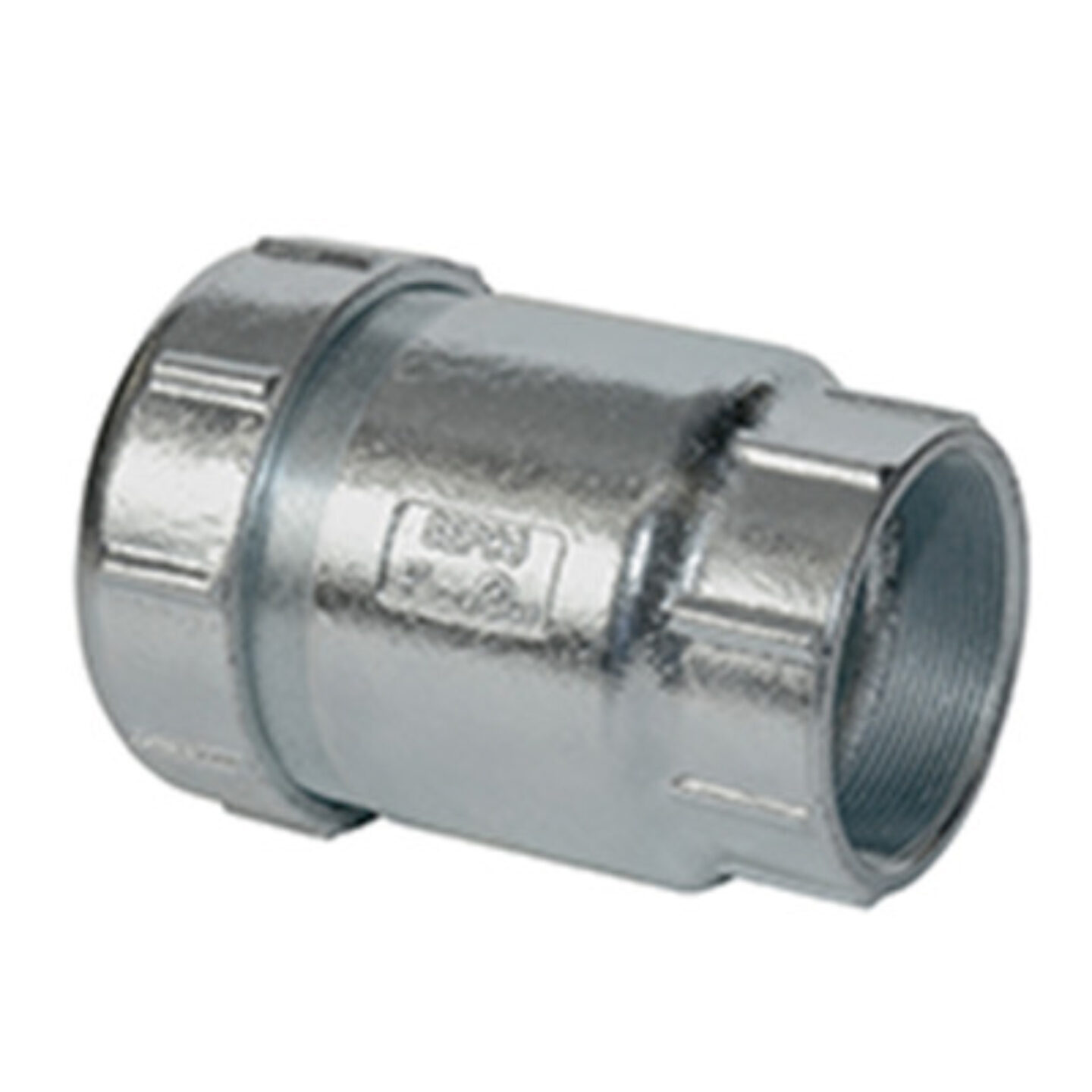

MALLEABLE IRON/HOT DIPPED GALVANIZED EXPANSION FITTINGS

APPLICATION

  • To allow for expansion and contraction in a run of rigid metal conduit.
  • For applications involving IMC, a 15″ min. length of rigid conduit should be used entering the expansion fitting due to the slightly smaller O.D. of the IMC.
  • Type AX provides for maximum of 4″ conduit movement (2″ in either direction), or 8″ conduit movement (4″ in either direction).

FEATURES

  • Weatherproof.
  • Concrete tight.
  • Wet or dry locations.
  • Includes insulating bushing.
  • Bonding jumpers (Sold separately, see page 7, example BJ-5075).

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Hot Dipped Galvanized/
Zinc Plated

UL LISTED

E198258

Catalog NumberTrade SizeUnit PackMaster PackUpc
AX-50 1/2” 2 10 10699 View details
AX-75 3/4” 1 5 10674 View details
AX-100 1” 1 2 10679 View details
AX-125 1-1/4” 1 2 10684 View details
AX-150 1-1/2” 1 2 10689 View details
AX-200 2” 1 2 10694 View details
AX-250 2-1/2” 1 10699 View details
AX-300 3” 1 10704 View details
AX-350 3-1/2” 1 10709 View details
AX-400 4” 1 10714 View details
AX-500 5” 1 10720 View details
