HOT DIPPED GALVANIZED FITTINGS

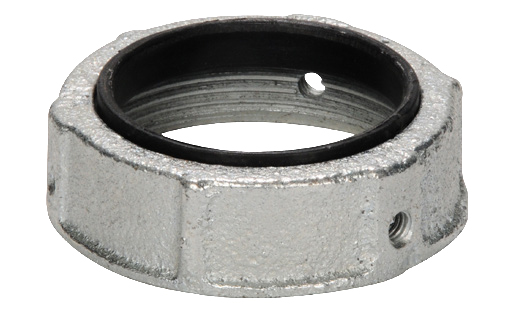

MALLEABLE IRON/HOT DIPPED GALVANIZED INSULATED BUSHINGS

APPLICATION

  • Used with a locknut to terminate threaded/threadless rigid and IMC conduit to a box or enclosure and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire insulation. Liner rated at 150°C.

FEATURES

  • The plastic liner won’t chip, crack, swell or shrink. It resists corrosion, chemicals and temperature extremes.

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Hot Dipped Galvanized/Zinc plated

OPTIONAL FINISH

Remove the “G” for Zinc plated
See page 88.

UL LISTED

E198258

Catalog NumberTrade SizeUnit PackMaster PackUpc
1206G 1/2" 100 1000 12063 View details
1207G 3/4" 100 500 12073 View details
1208G 1" 50 500 12083 View details
1209G 1-1/4" 25 250 12093 View details
1210G 1-1/2" 25 250 12103 View details
1211G 2" — 25 12113 View details
1212G 2-1/2" — 25 12123 View details
1213G 3" — 25 12133 View details
1214G 3-1/2" — 25 12143 View details
1215G 4" — 25 12153 View details
1216G 5" — 10 12163 View details
1217G 6" — 10 12173 View details
