RIGID-IMC FITTINGS

Are you looking for ease of
installation and durability on your next jobsite?

Check out SEPCO’s expansive catalog of Rigid/IMC fittings. From junction conduit outlet boxes, FS & FD device boxes and covers, compression and set-screw connectors and couplings, as well as multiple insulated bushings, you are sure to find the electrical fitting you need.

Contact SEPCO today.

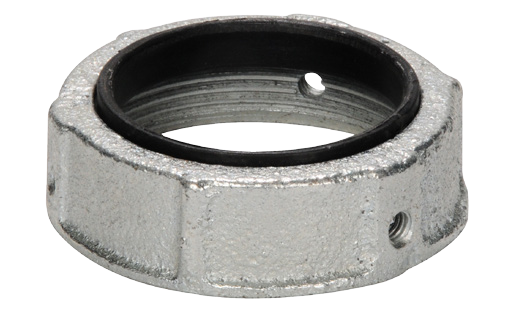

MALLEABLE IRON INSULATED BUSHINGS

APPLICATION

Used with a locknut to terminate threaded/ threadless rigid and IMC conduit to a box or enclosure and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire
insulation. Liner rated at 150°C.

FEATURES

  • The plastic liner won’t chip, crack, swell or shrink. It resists corrosion, chemicals, and temperature extremes.

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc plated

UL LISTED

E198258

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
1206 1/2” 100 1000 12061
1207 3/4” 100 500 12071
1208 1” 50 500 12081
1209 1-1/4” 25 250 12091
1210 1-1/2” 25 250 12101
1211 2” - 25 12111
1212 2-1/2” - 25 12121
1212 3” - 25 12131
1214 3-1/2” - 25 12141
1215 4” - 25 12151
1216 5” - 10 12161
1217 6” - 10 12171
Download Specification Sheet
