RIGID-IMC FITTINGS

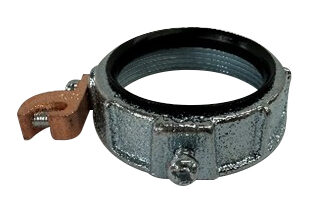

MALLEABLE IRON INSULATED GROUNDING BUSHINGS

APPLICATION

  • Used with a locknut to terminate
    threaded rigid and IMC conduit to a box or enclosure, and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire insulation. Liner rated at 150°C.

FEATURES

  • The plastic liner won’t chip, crack, swell or shrink. It resists corrosion, chemicals and temperature extremes.
  • Set-screw provided with each fitting locks bushing in any desired position.

STANDARD MATERIALS

Malleable Iron/open side copper lug

STANDARD FINISH

Zinc Plated
Optional Lug: Available with aluminum lug; use suffix “L” instead of “C.” Example: 20BI4L. See page 81.

OPTIONAL FINISH

For additional corrosion protection, specify Hot Dipped Galvanized. Add suffix “G” to Malleable Iron Catalog Number. Example 20BI4CG. For more information, see page 22.

UL LISTED

E93683

Catalog NumberTrade SizeUnit PackMaster PackUpc
20BI4C 1/2" 100 1000 20004 View details
21BI4C 3/4" 50 500 20011 View details
22BI4C 1" 25 250 20017 View details
23BI4C 1-1/4" 25 250 20023 View details
24BI4C 1-1/2" 25 250 20029 View details
24BIOC 1-1/2" 25 250 20030 View details
25BI4C 2" 25 250 20039 View details
25BIOC 2" 25 250 20040 View details
26BIOC 2-1/2" 10 25013 View details
26BI4OC 2-1/2" 10 25014 View details
27BIOC 3" 10 25025 View details
27BI4OC 3" 10 25032 View details
28BIOC 3-1/2" 10 25037 View details
28BI4OC 3-1/2" 10 25038 View details
29BIOC 4" 10 28051 View details
29BI4OC 4" 10 28052 View details
30BI4OC 5" 10 28064 View details
31BI4OC 6" 10 28069 View details
