RIGID-IMC FITTINGS

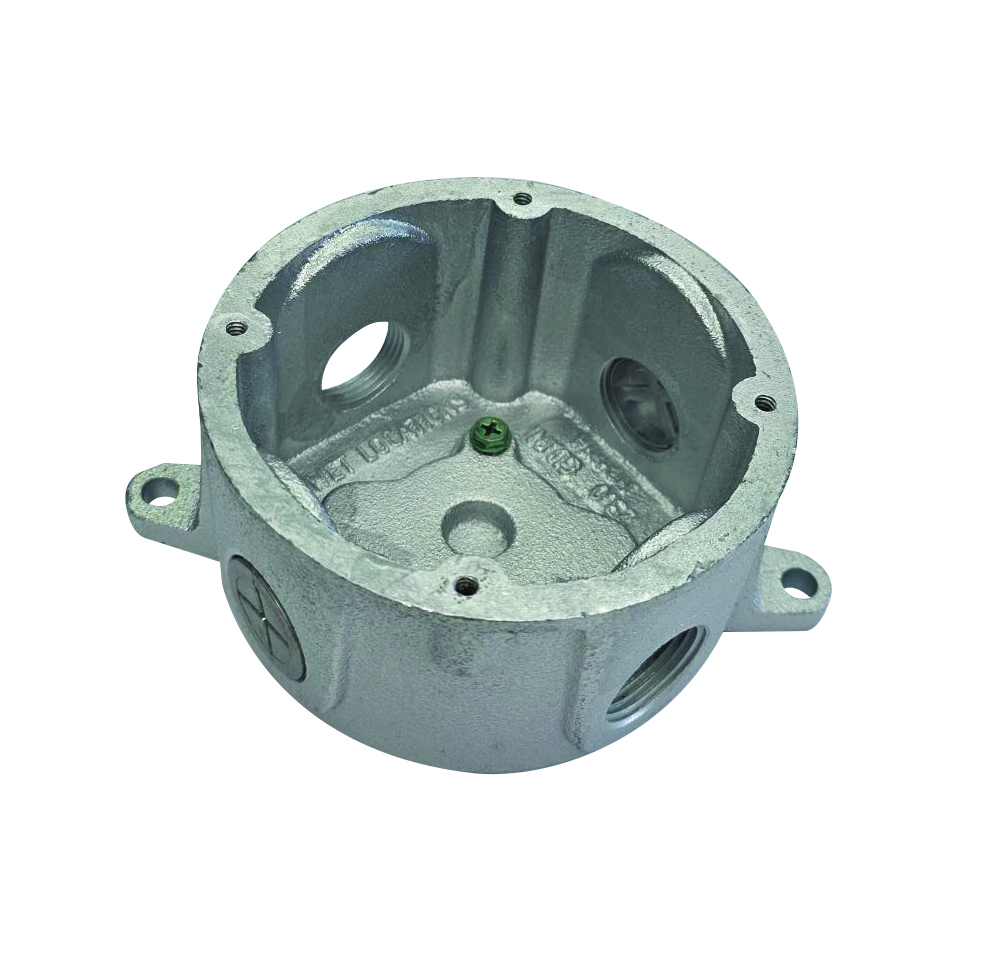

MALLEABLE IRON JUNCTION CONDUIT OUTLET BOXES

APPLICATION

  • JBDX outlet boxes are installed in threaded rigid conduit systems to:
    • Act as junction boxes.
    • Act as pull outlets.
    • Accept round base wiring devices and covers intended for use on 4″ outlet boxes.
    • Mount enclosed and gasketed lighting fixtures: ARB fixture hangers.

FEATURES

  • Surface mounting; flush mounting can be obtained by nailing box to concrete form through mounting lugs.
  • Drilled mounting lugs.
  • Four drilled and tapped conduit bosses spaced 90° apart on sides.

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc Plated

OPTIONAL FINISH

For additional corrosion protection, specify Hot Dipped Galvanized. Add Suffix “G” to Malleable Iron catalog number. Example JBDX-75G. For more information see page 8.

UL LISTED

E198259

Catalog NumberTrade SizeUnit PackMaster PackUpc
JBDX-50 1/2" 1 5 89230 View details
JBDX-75 3/4" 1 5 89235 View details
JBDX-100 1" 1 5 89240 View details
