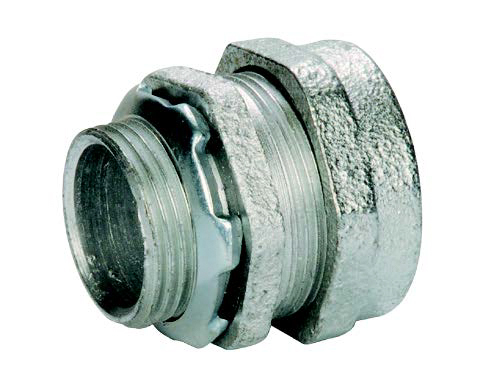

MALLEABLE IRON RAINTIGHT RIGID COMPRESSION CONNECTORS
APPLICATION
To connect threadless rigid conduit to boxes and enclosures creating a raintight seal.
FEATURES
- Raintight and Concrete tight Male Hub Threads.
- NPSM Thread 1/2” through 2”
- NPT Thread above 2”
STANDARD MATERIALS
Malleable Iron
STANDARD FINISH
Zinc Plated
UL LISTED
E198258
| Catalog Number | Trade Size | Unit Pack | Master Pack | UPC | |
|---|---|---|---|---|---|
| NTC-50RT | 1/2" | 25 | 250 | 14215 | View details |
| NTC-75RT | 3/4" | 25 | 250 | 14225 | View details |
| NTC-100RT | 1" | 10 | 100 | 14235 | View details |
| NTC-125RT | 1-1/4” | 5 | 50 | 14245 | View details |
| NTC-150RT | 1-1/2” | 2 | 20 | 14255 | View details |
| NTC-200RT | 2” | 5 | 25 | 14274 | View details |
| NTC-250RT | 2-1/2” | 1 | 10 | 14276 | View details |
| NTC-300RT | 3” | 1 | 5 | 14284 | View details |
| NTC-350RT | 3-1/2” | 1 | 5 | 14289 | View details |
| NTC-400RT | 4” | 1 | 5 | 14286 | View details |
| NTC-500RT | 5” | - | 1 | 14299 | View details |
| NTC-600RT | 6” | - | 1 | 14304 | View details |
