LIQUIDTIGHT FITTINGS

SEPCO provides high-quality liquidtight fittings with our standard fast delivery and great service.

We offer straight, 90°and 45° liquid tight connectors with aluminum lugs or copper lugs. We also carry galvanized liquid tight fittings with copper lugs and zinc straight and 90°fittings.

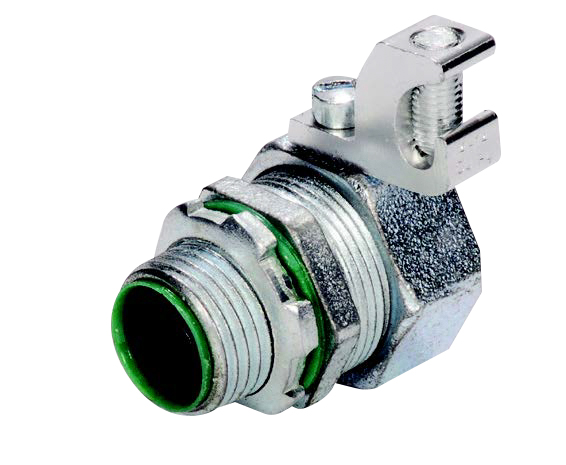

MALLEABLE IRON STRAIGHT LIQUIDTIGHT CONNECTORS WITH ALUMINUM LUGS

APPLICATION

Connects conduit and terminates bonding conductor run externally across liquidtight conduit.

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius Furnished with Insulated throat, steel locknut, and sealing ring
  • Liquidtight/Raintight/Concrete tight/Oiltight
  • Suitable for grounding
  • Long ferrule prevents pull-out and tight bend conduit “pop-out”
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I.

STANDARD MATERIALS

Malleable Iron/Steel Ferrule/ Aluminum Grounding Lug

STANDARD FINISH

Zinc Plated

UL LISTED

E212551

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
SLT47ALT 3/8” 25 250 50000
SLT27ALT 1/2” 25 250 50001
SLT28ALT 3/4” 10 100 50002
SLT29ALT 1” 5 50 50003
SLT30ALT 1-1/4” 5 50 50004
SLT31ALT 1-1/2” 10 50 50005
SLT32ALT 2” 5 25 50006
SLT33ALT 2-1/2” 1 10 50007
SLT34ALT 3” 1 10 50008
SLT60ALT 3-1/2” 1 10 50009
SLT61ALT 4” 1 5 50010
SLT62ALT 5” - 1 50011
SLT63ALT 6” - 1 50012
Download Specification Sheet
