RIGID-IMC FITTINGS

Are you looking for ease of
installation and durability on your next jobsite?

Check out SEPCO’s expansive catalog of Rigid/IMC fittings. From junction conduit outlet boxes, FS & FD device boxes and covers, compression and set-screw connectors and couplings, as well as multiple insulated bushings, you are sure to find the electrical fitting you need.

Contact SEPCO today.

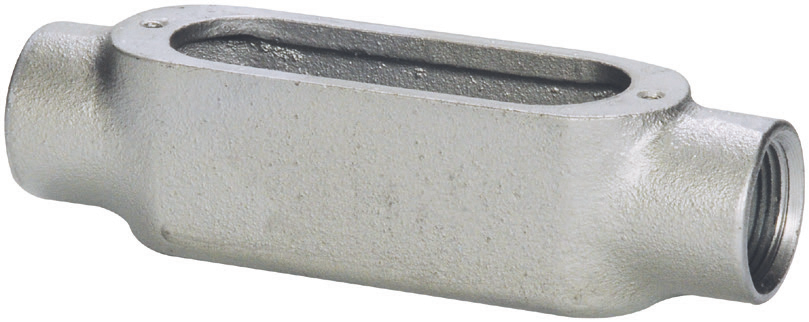

Malleable Iron Threaded Conduit Bodies

APPLICATION

To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.

FEATURES

  • Tapered threaded hubs (NPT)
  • Flat back design for easy mounting close to walls
  • Suitable for use in concrete

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc Plated

UL LISTED

E198259

ico

OPTIONAL FINISH

For additional corrosion protection, specify Hot Dipped Galvanized. Add suffix ‘G’ to Malleable Iron catalog number. Example LB1G. For more information, see page 11.

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
C1 1/2” 10 50 43010
C2 3/4” 10 50 43020
C3 1” 5 25 43030
C4 1-1/4” 10 43040
C5 1-1/2” 10 43050
C6 2” 5 43060
C7 2-1/2” 1 43070
C8 3” 1 43080
C9 3-1/2” 1 43090
C10 4” 1 43100
Download Specification Sheet
