RIGID-IMC FITTINGS

Are you looking for ease of
installation and durability on your next jobsite?

Check out SEPCO’s expansive catalog of Rigid/IMC fittings. From junction conduit outlet boxes, FS & FD device boxes and covers, compression and set-screw connectors and couplings, as well as multiple insulated bushings, you are sure to find the electrical fitting you need.

Contact SEPCO today.

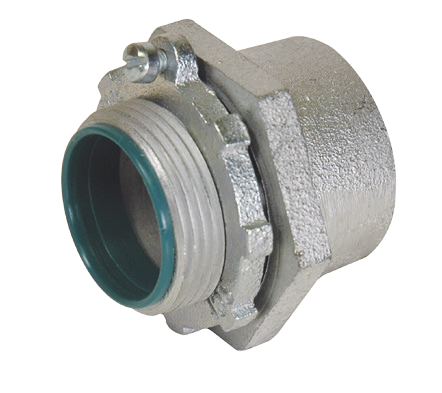

MALLEABLE IRON WATERTIGHT CONDUIT HUBS

APPLICATION

General Purpose Fitting.

Insulated Throat form with

Bonding Screw.

FEATURES

  • Male thread type
  • Tapered female thread for rigid conduit and IMC
  • Recessed O-ring seal assures watertight and dust tight connections.
  • Insulated throat and bonding locknut is suitable for service entrance application.
  • Suitable for use in hazardous locations as follows: Class I, Div. 2 Class II, Div. I, 2 Class III, Div. I, 2 Per NEC 501-4 (b), 502-4 (a), 503-3 (a)

MATERIAL/FINISH

Malleable Iron/Zinc Plated

UL LISTED

E198258

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
CHM50 1/2” 25 250 70870
CHM75 3/4” 25 250 70871
CHM100 1” 10 100 70872
CHM125 1-1/4” 5 25 70873
CHM150 1-1/2” 2 20 70874
CHM200 2” 2 20 70875
CHM250 2-1/2” - 10 70876
CHM300 3” - 5 70877
CHM350 3-1/2” - 5 70878
CHM400 4” - 5 70879
CHM500 5” - 1 70880
CHM600 6” - 1 70881
Download Specification Sheet

PRODUCTS WITH THE PROMISE OF OUTSTANDING SERVICE

READY TO ORDER?

SEPCO makes it easy to secure the right electrical fittings. Locate a representative in your area, or contact SEPCO directly. We will be happy to promptly assist you.

How To Purchase
