HOT DIPPED GALVANIZED FITTINGS
SEPCO MAINTAINS A LARGE SUPPLY OF MALLEABLE IRON, HOT DIPPED GALVANIZED FITTINGS
We are the only industry manufacturer offering a specializing plating process called Double Coate, which adds zinc plating after hot dip galvanizing, offering extra protection for your electrical fittings. From moguls, expansion fittings, liquidtight connectors, three-piece couplings, one-hole snaps, conduit bodies, hubs, and grounding bushings, SEPCO supplies reliable parts when and where you need them.
Contact SEPCO today.
MALLEABLE IRON/HOT DIPPED GALVANIZED MOGULS WITH COVER AND GASKET
MLL200G
Trade Size | 2” |
---|---|
Max Wire Size | 3 #4/0 AWG |
Vol. Cu. IN. | 143 |
Unit Pack | - |
Master Pack | 1 |
Lbs. / 100 Pcs. | 631 |
UPC | 10149 |

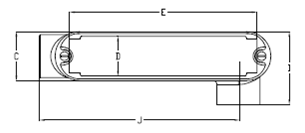

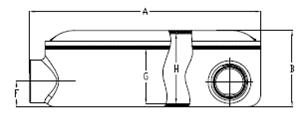

Dim A | 17.02 |
Dim B | 4.43 |
Dim C | 3.15 |
Dim D | 2.52 |
Dim E | 13.09 |
Dim F | 1.63 |
Dim G | 3.14 |
Dim H | 4.02 |
Dim I | 4.13 |
Dim J | 15.45 |
Number of cover holes | 2 |
Competitor Part Number | LL200-M, LL6X-200MG |
APPLICATION
- Larger body size facilitates pulling of large and heavy conductors. Specially designed raised cast covers provide additional wiring area.
- SEPCO Moguls are used for pulling straight, 45° or 90° angle turns and/or making taps and splices.
FEATURES
- Smooth, rounded integral bushing in each hub protects conductor insulation.
- Accurately taped, tapered threads for tight, rigid joints and ground continuity.
- Covers have captive stainless steel screws to speed installation, prevent ‘freezing’ of screws.
- Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2).
STANDARD MATERIALS
Bodies and Covers: Malleable Iron
Gaskets: Neoprene
Screws: Stainless Steel
STANDARD FINISH
Bodies and Covers: Hot-Dipped Galvanized
UL LISTED
E198259
