HOT DIPPED GALVANIZED FITTINGS

SEPCO MAINTAINS A LARGE SUPPLY OF MALLEABLE IRON, HOT DIPPED GALVANIZED FITTINGS

We are the only industry manufacturer offering a specializing plating process called Double Coate, which adds zinc plating after hot dip galvanizing, offering extra protection for your electrical fittings. From moguls, expansion fittings, liquidtight connectors, three-piece couplings, one-hole snaps, conduit bodies, hubs, and grounding bushings, SEPCO supplies reliable parts when and where you need them.

Contact SEPCO today.

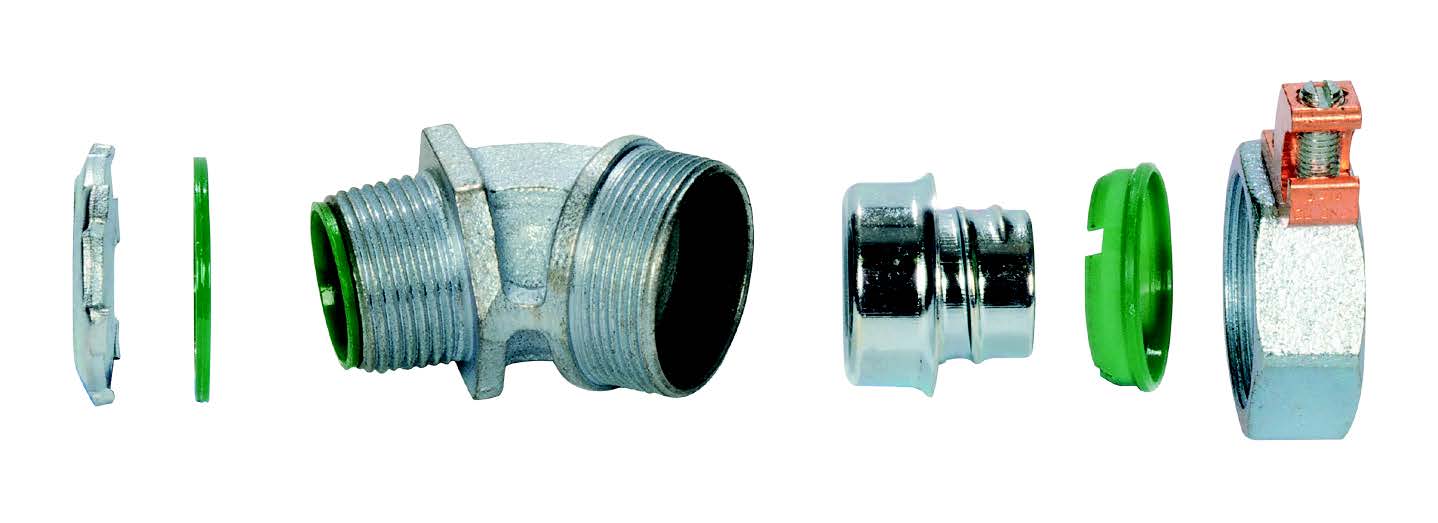

MALLEABLE IRON/HOT DIPPED GALVANIZED 45° LIQUIDTIGHT CONNECTORS WITH COPPER LUGS

Back
image description
image description
image description

SLT36-45CLTMG

Trade Size 3/4”
Lug Size #4-#14
I.D. 0.785
O.D. 1.020
DIM A 1.68
DIM B 0.52
DIM C 1.55
DIM D 1.54
DIM E 0.75
Unit Pack 10
Master Pack 100
Lbs. / 100 Pcs. 31
UPC 50572
Competitor Part Number -

APPLICATION

Connects conduit and terminates bonding conductor run externally across liquidtight conduit.

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius
  • Furnished with Insulated throat, steel locknut, and sealing ring
  • Liquidtight/Raintight/Oiltight
  • Suitable for grounding
  • Long ferrule prevents pull-out and tight bend conduit “pop-out”
  • UL Listed liquidtight flexible metal conduit fittings
    are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I.

STANDARD MATERIALS

Malleable Iron/Steel Ferrule/Copper Grounding Lug

STANDARD FINISH

Hot Dipped Galvanized/Zinc Plated

UL LISTED

E93683
