HOT DIPPED GALVANIZED FITTINGS
SEPCO MAINTAINS A LARGE SUPPLY OF MALLEABLE IRON, HOT DIPPED GALVANIZED FITTINGS
We are the only industry manufacturer offering a specializing plating process called Double Coate, which adds zinc plating after hot dip galvanizing, offering extra protection for your electrical fittings. From moguls, expansion fittings, liquidtight connectors, three-piece couplings, one-hole snaps, conduit bodies, hubs, and grounding bushings, SEPCO supplies reliable parts when and where you need them.
Contact SEPCO today.

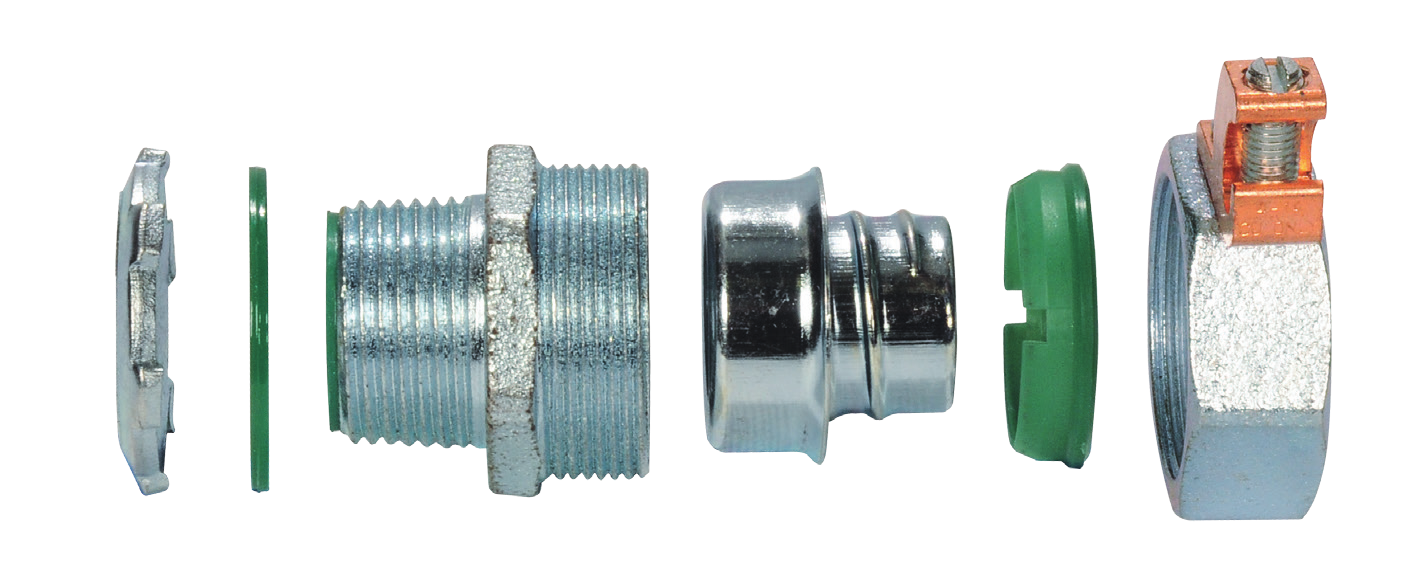

MALLEABLE IRON/HOT DIPPED GALVANIZED STRAIGHT LIQUIDTIGHT CONNECTORS WITH COPPER LUGS
SLT34CLTMG
Trade Size | 3” |
---|---|
Lug Size | #1/0-#8 |
I.D. | 2.939 |
O.D. | 3.418 |

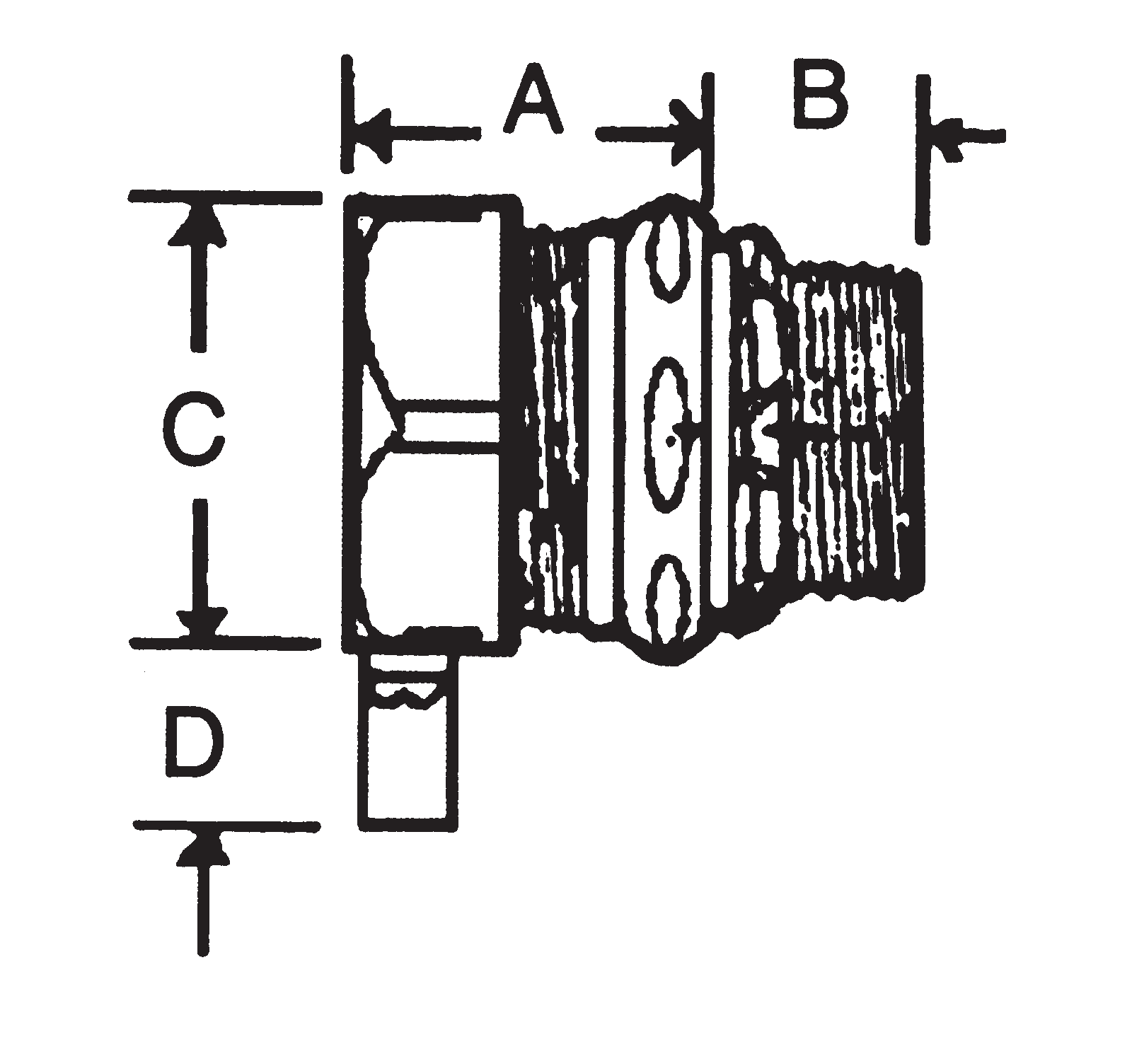

DIM A | 2.50 |
DIM B | 1.15 |
DIM C | 4.18 |
DIM D | 1.13 |
Unit Pack | 1 |
Master Pack | 10 |
Lbs. / 100 Pcs. | 465 |
UPC | 50524 |
Competitor Part Number | - |
APPLICATION
Connects conduit and terminates bonding conductor run externally across liquidtight conduit.
FEATURES
- Tapered threaded male hub NPT
- Compact, slim diameter with small turning radius
- Furnished with Insulated throat, steel locknut, and sealing ring
- Liquidtight/Raintight/Oiltight
- Suitable for grounding & wet locations
- Long ferrule prevents pullout and tight bend conduit ‘pop-out’
- UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I
STANDARD MATERIALS
Malleable Iron/Steel Ferrule/Copper Grounding Lug
STANDARD FINISH
Hot Dipped Galvanized/Zinc Plated
UL LISTED
E93683
