CORD GRIP FITTINGS

SEPCO offers time-tested service and quality with our cord grip electrical fittings.

We carry steel straight, malleable iron 90° and 45° cord grip strain relief connectors. Our large inventory guarantees you can find what you need when you need it.

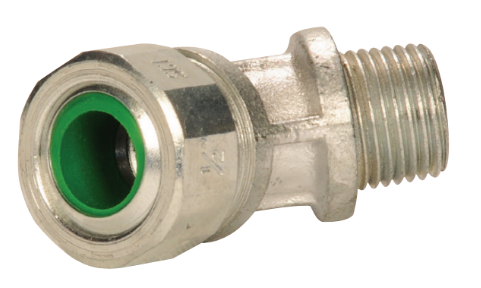

MALLEABLE IRON CORD GRIP STRAIN RELIEF CONNECTORS

APPLICATION

To secure and seal cords or cables entering enclosures or raceways.

FEATURES

  • Neoprene Grommet for a moisture proof seal
  • Simple installation, cord can be installed without disassembly of the fitting
  • Liquidtight/Oiltight/Raintight
  • Suitable for NEMA 4 enclosures and other wetlocations
  • Male tapered thread NPT
  • Colored gripper allows for easy identification

STANDARD MATERIALS

Malleable Iron Body/Steel Gland Nut/ Neoprene Grommet

STANDARD FINISH

Zinc Plated

UL LISTED

E198257

image description
Catalog NumberTrade SizeUnit PackMaster PackUPC
CG50-250451/2”2510086001
CG50-350451/2”2510086002
CG50-450451/2”2510086003
CG50-560451/2”2510086004
CG50-650451/2”2510086005
CG75-250453/4”105086101
CG75-350453/4”105086102
CG75-450453/4”105086103
CG75-560453/4”105086104
CG75-650453/4”105086105
CG75-750453/4”105086106
CG75-850453/4”105086107
CG100-560451”52586201
CG100-650451”52586202
CG100-750451”52586203
CG100-850451”52586204
CG100-950451”52586205
CG100-1050451”52586206
CG125-850451-1/4”52586301
CG125-950451-1/4”52586302
CG125-1050451-1/4”52586303
CG125-1150451-1/4”52586304
CG125-1250451-1/4”52586305
CG125-1375451-1/4”52586306
CG150-1050451-1/2”21086401
CG150-1150451-1/2”21086402
CG150-1250451-1/2”21086403
CG150-1375451-1/2”21086404
Download Specification Sheet
