EMT FITTINGS

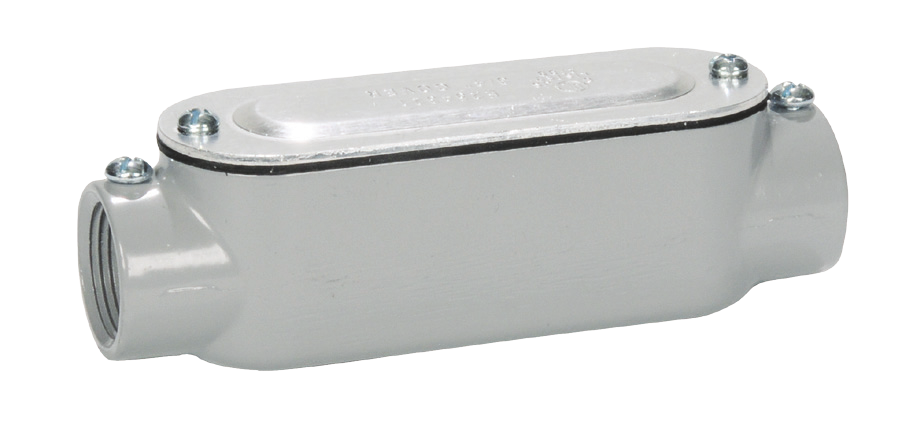

ALUMINUM COMBINATION CONDUIT BODIES WITH COVER AND GASKET

APPLICATION

Used with threaded rigid conduit, IMC, and EMT for providing access to the interior of a conduit system for pulling, splicing, inspection and maintenance.

FEATURES

  • Assembled with slotted/ Robertson combination screws.
  • Assembled with neoprene gasket and stamped cover.
  • Tapered threaded hubs (NPT).
    Die cast fom high-strength, corrosion and weather resistant, copper-free aluminum alloy.
  •  Flat back design for easy mounting close to walls.
  •  Suitable for use in concrete.

STANDARD MATERIALS

Die cast/Copper-free Aluminum

STANDARD FINISH

Aluminum Enameled

UL LISTED

E198259

ico

Catalog NumberTrade SizeUnit PackMaster PackUpc

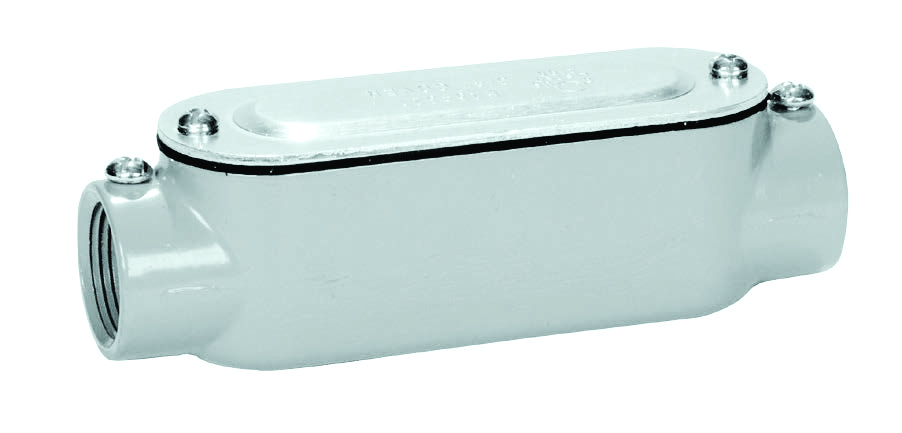

C1CA 1/2” 10 50 64401 View details
C2CA 3/4” 10 50 64402 View details
C3CA 1” 5 25 64403 View details
C4CA 1-1/4” - 10 64404 View details
C5CA 1-1/2” - 10 64405 View details
C6CA 2” - 5 64406 View details
