HOT DIPPED GALVANIZED FITTINGS

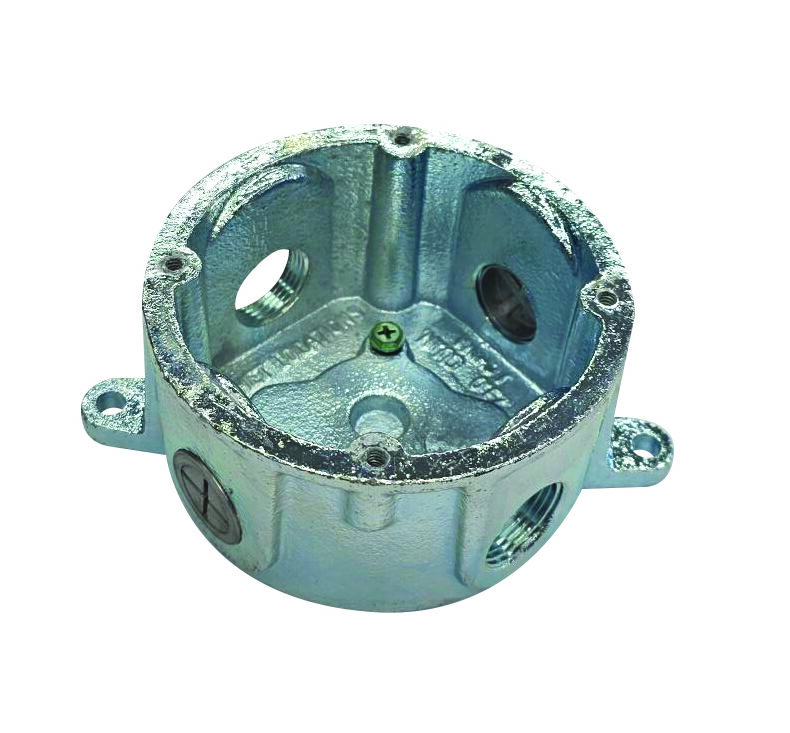

MALLEABLE IRON/HOT DIPPED GALVANIZED JUNCTION CONDUIT OUTLET BOXES

APPLICATION

  • JBDX outlet boxes are installed in threaded rigid conduit systems to:
    • Act as junction boxes.
    • Act as pull outlets.
    • Accept round base wiring devices and covers intended for use on 4″ outlet boxes.
    • Mount enclosed and gasketed lighting fixtures: ARB fixture hangers.

FEATURES

  • Surface mounting; flush mounting can be obtained by nailing box to concrete form through mounting lugs.
  • Drilled mounting lugs.
  • Four drilled and tapped conduit bosses spaced 90° apart on sides.

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Hot Dipped Galvanized/Zinc Plated

OPTIONAL FINISH

For Malleable Iron/Zinc Plated, please remove the “G” to suffix from Hot Dipped Galvanized catalog number and see page 42.

UL LISTED

E198259

Catalog NumberTrade SizeUnit PackMaster PackUpc
JBDX-50G 1/2" 1 5 89232 View details
JBDX-75G 3/4" 1 5 89237 View details
JBDX-100G 1" 1 5 89242 View details
