HOT DIPPED GALVANIZED FITTINGS

MALLEABLE IRON/HOT DIPPED GALVANIZED JUNCTION CONDUIT OUTLET BOXES

Back
image description
image description

JBDX-75G

CATALOG NUMBERJBDX-75G
TRADE SIZE3/4"

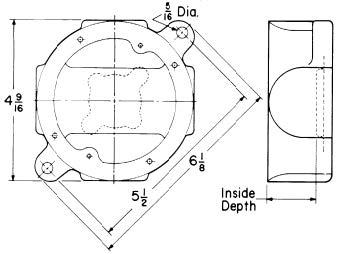

INSIDE DEPTH2.06
DIM A4.563
DIM B5.55
DIM C6.125
UNIT PACK1
MASTER PACK5
LBS./ 100 PCS305
UPC #89237

APPLICATION

  • JBDX outlet boxes are installed in threaded rigid conduit systems to:
    • Act as junction boxes.
    • Act as pull outlets.
    • Accept round base wiring devices and covers intended for use on 4″ outlet boxes.
    • Mount enclosed and gasketed lighting fixtures: ARB fixture hangers.

FEATURES

  • Surface mounting; flush mounting can be obtained by nailing box to concrete form through mounting lugs.
  • Drilled mounting lugs.
  • Four drilled and tapped conduit bosses spaced 90° apart on sides.

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Hot Dipped Galvanized/Zinc Plated

OPTIONAL FINISH

For Malleable Iron/Zinc Plated, please remove the “G” to suffix from Hot Dipped Galvanized catalog number and see page 42.

UL LISTED

E198259
