RIGID-IMC FITTINGS
Are you looking for ease of
installation and durability on your next jobsite?
Check out SEPCO’s expansive catalog of Rigid/IMC fittings. From junction conduit outlet boxes, FS & FD device boxes and covers, compression and set-screw connectors and couplings, as well as multiple insulated bushings, you are sure to find the electrical fitting you need.
Contact SEPCO today.

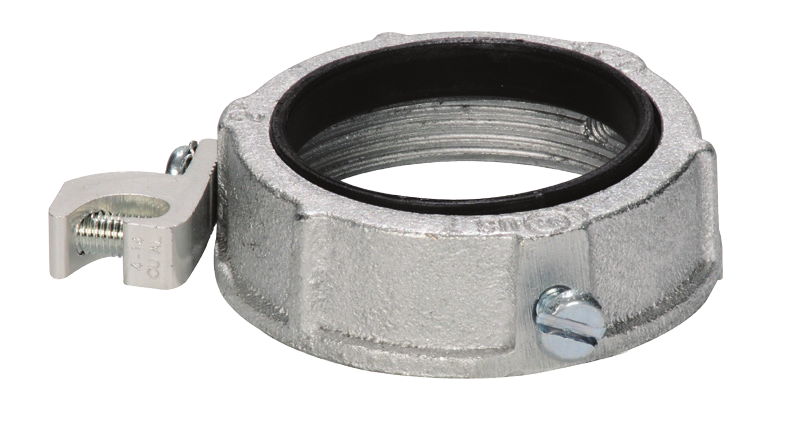

MALLEABLE IRON INSULATED GROUNDING BUSHINGS
APPLICATION
Used with a locknut to terminate threaded rigid and IMC conduit to a box or enclosure and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire insulation. Liner rated at 150°C.
FEATURES
- The plastic liner won’t chip, crack, swell or shrink. It resists corrosion, chemicals, and temperature extremes.
- Set-screw provided with each fitting locks bushing in any desired position.
- UL Listed for use with Copper or Aluminum Grounding Conductors.
STANDARD MATERIALS
Malleable Iron/Open side tin plated aluminum lug.
STANDARD FINISH
Zinc plated
Optional Lug: Available with copper lug; use suffix C instead of L. Example 20BI4C.
UL LISTED
E93683
OPTIONAL FINISH
For additional corrosion protection, specify Hot Dipped Galvanized. Add suffix ‘G’ to Malleable Iron catalog number. Example 20BI4LG. For more information, see page 14.
| Catalog Number | Trade Size | Unit Pack | Master Pack | UPC | |
|---|---|---|---|---|---|
| 20BI4L | 1/2” | 100 | 1000 | 20006 | View details |
| 21BI4L | 3/4” | 50 | 500 | 20013 | View details |
| 22BI4L | 1” | 25 | 500 | 20019 | View details |
| 23BI4L | 1-1/4” | 25 | 500 | 20025 | View details |
| 24BI4L | 1-1/2” | 25 | 500 | 20033 | View details |
| 25BIOL | 2” | 25 | 500 | 25012 | View details |
| 25BI4L | 2” | 25 | 500 | 25011 | View details |
| 26BIOL | 2-1/2” | - | 10 | 25017 | View details |
| 26BI40L | 2-1/2” | - | 10 | 25018 | View details |
| 27BIOL | 3” | - | 10 | 25029 | View details |
| 27BI40L | 3” | - | 10 | 25030 | View details |
| 28BIOL | 3-1/2” | - | 10 | 28043 | View details |
| 28BI40L | 3-1/2” | - | 10 | 28044 | View details |
| 29BIOL | 4” | - | 10 | 28055 | View details |
| 29BI40L | 4” | - | 10 | 28056 | View details |
| 30BI4OL | 5” | - | 10 | 28067 | View details |
| 31BI4OL | 6” | - | 10 | 28068 | View details |
