RIGID-IMC FITTINGS
Are you looking for ease of
installation and durability on your next jobsite?
Check out SEPCO’s expansive catalog of Rigid/IMC fittings. From junction conduit outlet boxes, FS & FD device boxes and covers, compression and set-screw connectors and couplings, as well as multiple insulated bushings, you are sure to find the electrical fitting you need.
Contact SEPCO today.

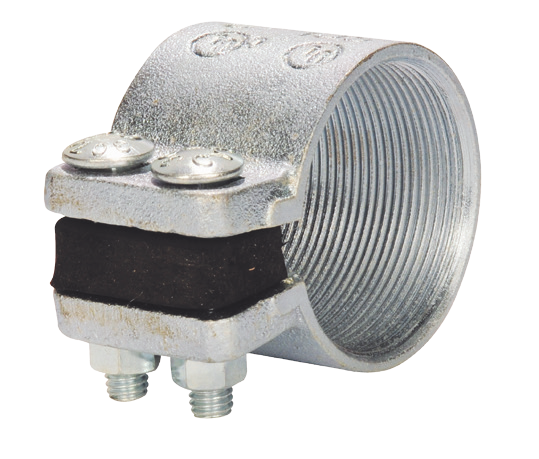

MALLEABLE IRON SPLIT COUPLINGS
APPLICATION
A speed union for economically joining two threaded rigid metal conduits.
FEATURES
- A neoprene gasket provides a concrete tight seal at the joint
- Used where conduit runs are closely spaced
- Used where conduit is tight against wall, ceiling or other obstruction
- Used where conduit cannot be turned
STANDARD MATERIALS
Malleable Iron
STANDARD FINISH
Zinc Plated
UL LISTED
E198258
| Catalog Number | Trade Size | Unit Pack | Master Pack | UPC | |
|---|---|---|---|---|---|
| *SCC-50 | 1/2” | 10 | 100 | 70795 | View details |
| *SCC-75 | 3/4” | 10 | 100 | 70796 | View details |
| *SCC-100 | 1” | 10 | 40 | 70797 | View details |
| *SCC-125 | 1-1/4” | 5 | 20 | 70798 | View details |
| *SCC-150 | 1-1/2” | 5 | 20 | 70799 | View details |
| SCC-200 | 2” | 5 | 20 | 70800 | View details |
| SCC-250 | 2-1/2” | 2 | 20 | 70801 | View details |
| SCC-300 | 3” | 2 | 20 | 70802 | View details |
| SCC-350 | 3-1/2” | 1 | 5 | 70803 | View details |
| SCC-400 | 4” | 1 | 5 | 70804 | View details |
| SCC-500 | 5” | - | 1 | 70805 | View details |
| SCC-600 | 6” | - | 1 | 70806 | View details |
