HOT DIPPED GALVANIZED FITTINGS
SEPCO MAINTAINS A LARGE SUPPLY OF MALLEABLE IRON, HOT DIPPED GALVANIZED FITTINGS
We are the only industry manufacturer offering a specializing plating process called Double Coate, which adds zinc plating after hot dip galvanizing, offering extra protection for your electrical fittings. From moguls, expansion fittings, liquidtight connectors, three-piece couplings, one-hole snaps, conduit bodies, hubs, and grounding bushings, SEPCO supplies reliable parts when and where you need them.
Contact SEPCO today.

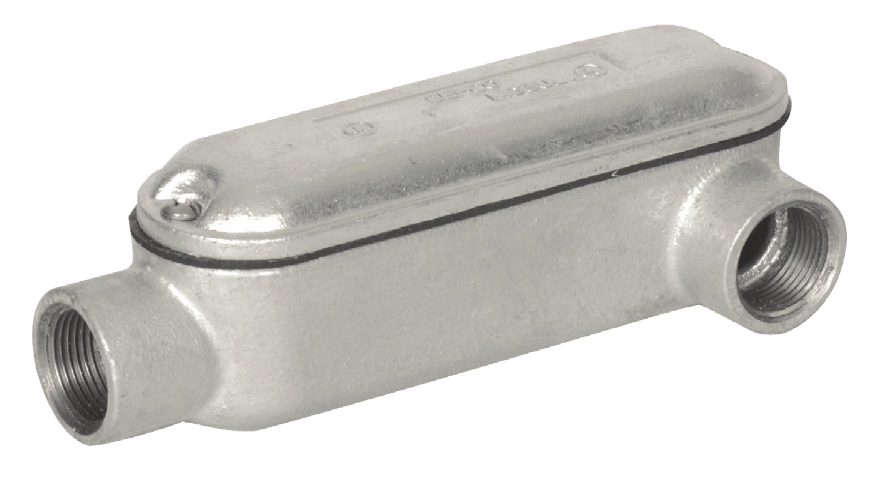

MALLEABLE IRON/HOT DIPPED GALVANIZED MOGULS WITH COVER AND GASKET
APPLICATION
- Larger body size facilitates pulling of large and heavy conductors. Specially designed raised cast covers provide additional wiring area.
- SEPCO Moguls are used for pulling straight, 45° or 90° angle turns and/or making taps and splices.
FEATURES
- Smooth, rounded integral bushing in each hub protects conductor insulation.
- Accurately taped, tapered threads for tight, rigid joints and ground continuity.
- Covers have captive stainless steel screws to speed installation, prevent ‘freezing’ of screws.
- Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2).
STANDARD MATERIALS
Bodies and Covers: Malleable Iron
Gaskets: Neoprene
Screws: Stainless Steel
STANDARD FINISH
Bodies and Covers: Hot-Dipped Galvanized
UL LISTED
E198259
| Catalog Number | Trade Size | Unit Pack | Master Pack | UPC | |
|---|---|---|---|---|---|
| MLL100G | 1” | - | 1 | 10146 | View details |
| MLL125G | 1-1/4” | - | 1 | 10147 | View details |
| MLL150G | 1-1/2” | - | 1 | 10148 | View details |
| MLL200G | 2” | - | 1 | 10149 | View details |
