HOT DIPPED GALVANIZED FITTINGS
SEPCO MAINTAINS A LARGE SUPPLY OF MALLEABLE IRON, HOT DIPPED GALVANIZED FITTINGS
We are the only industry manufacturer offering a specializing plating process called Double Coate, which adds zinc plating after hot dip galvanizing, offering extra protection for your electrical fittings. From moguls, expansion fittings, liquidtight connectors, three-piece couplings, one-hole snaps, conduit bodies, hubs, and grounding bushings, SEPCO supplies reliable parts when and where you need them.
Contact SEPCO today.

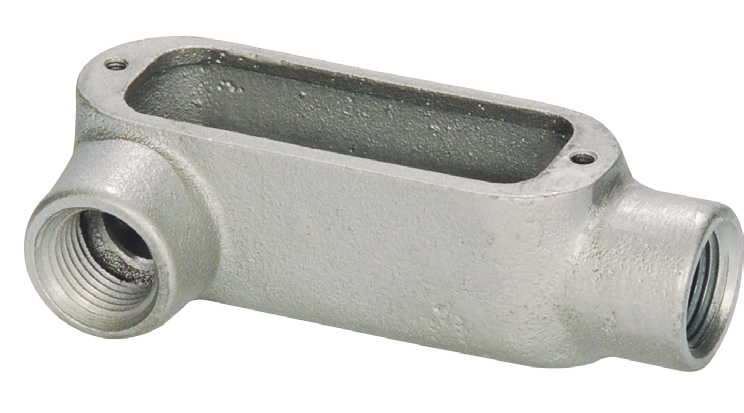

MALLEABLE IRON/HOT DIPPED GALVANIZED THREADED CONDUIT BODIES
APPLICATION
To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
FEATURES
- Exclusive built-in rollers facilitate cable pulling
from sizes 1 1/4”- 4” - Tapered threaded hubs (NPT)
- Flat back design for easy mounting close to
walls - Suitable for use in concrete
STANDARD MATERIALS
Malleable Iron
STANDARD FINISH
Hot Dipped Galvanized/Zinc Plated
OPTIONAL FINISH
For Malleable Iron / Zinc Plated, please remove suffix ‘G’ from Hot Dipped Galvanized Catalog Number and see page 36.
UL LISTED
E198259
| Catalog Number | Trade Size | Unit Pack | Master Pack | UPC | |
|---|---|---|---|---|---|
| LR1G | 1/2” | 10 | 50 | 10176 | View details |
| LR2G | 3/4” | 10 | 50 | 10177 | View details |
| LR3G | 1” | 5 | 25 | 10178 | View details |
| LR4G | 1-1/4” | — | 10 | 10179 | View details |
| LR5G | 1-1/2” | — | 10 | 10180 | View details |
| LR6G | 2” | — | 5 | 10181 | View details |
| LR7G | 2-1/2” | — | 1 | 10200 | View details |
| LR8G | 3” | — | 1 | 10201 | View details |
| LR9G | 3-1/2” | — | 1 | 10202 | View details |
| LR10G | 4” | — | 1 | 10203 | View details |
