AC-MC-FLEX FITTINGS
SEPCO CARRIES A LARGE INVENTORY OF AC-MC-FLEX FITTINGS!
Including big bite-saddle type connectors and couplings, quicklock type connectors, and malleable iron or zinc cable connectors. We also offer zinc two screw take-all connectors. Get what you need with SEPCO’s unparalleled service and delivery.

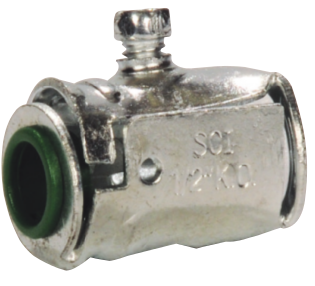

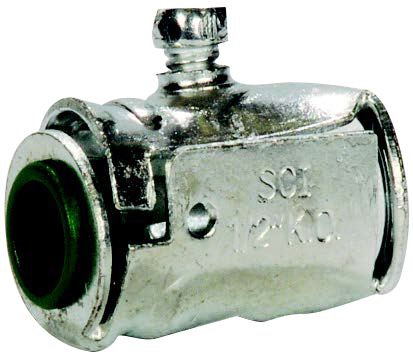

QUICKLOCK TYPE CONNECTORS WITH INSULATED THROAT
APPLICATION
Used to connect MC, AC, and Flex Cable to box or enclosure
FEATURES
- No locknut required
- Single-unit or duplex construction with captive clamp
- Connects 50 MC, AC and Flex RW cable sizes with just three fittings
- Easy to install. Just tilt, insert and snap down
- Single unit construction eliminates loose component parts; integral green plastic insulated throat bushing provides maximum protection for wire installation
- Concrete tight when taped and used with PVC jacketed cord
- Accepts 2 cables of each size listed
STANDARD MATERIALS
Tubular Steel
STANDARD FINISH
Zinc Plated
UL LISTED
E309514
| Catalog Number | Trade Size | Unit Pack | Master Pack | UPC | |
|---|---|---|---|---|---|
| QL-50 | 1/2” SINGLE | 50 | 500 | 90001 | View details |
| QL-75 | 3/4” SINGLE | 25 | 125 | 90002 | View details |
| QL-50D | DUPLEX | 25 | 125 | 90003 | View details |
